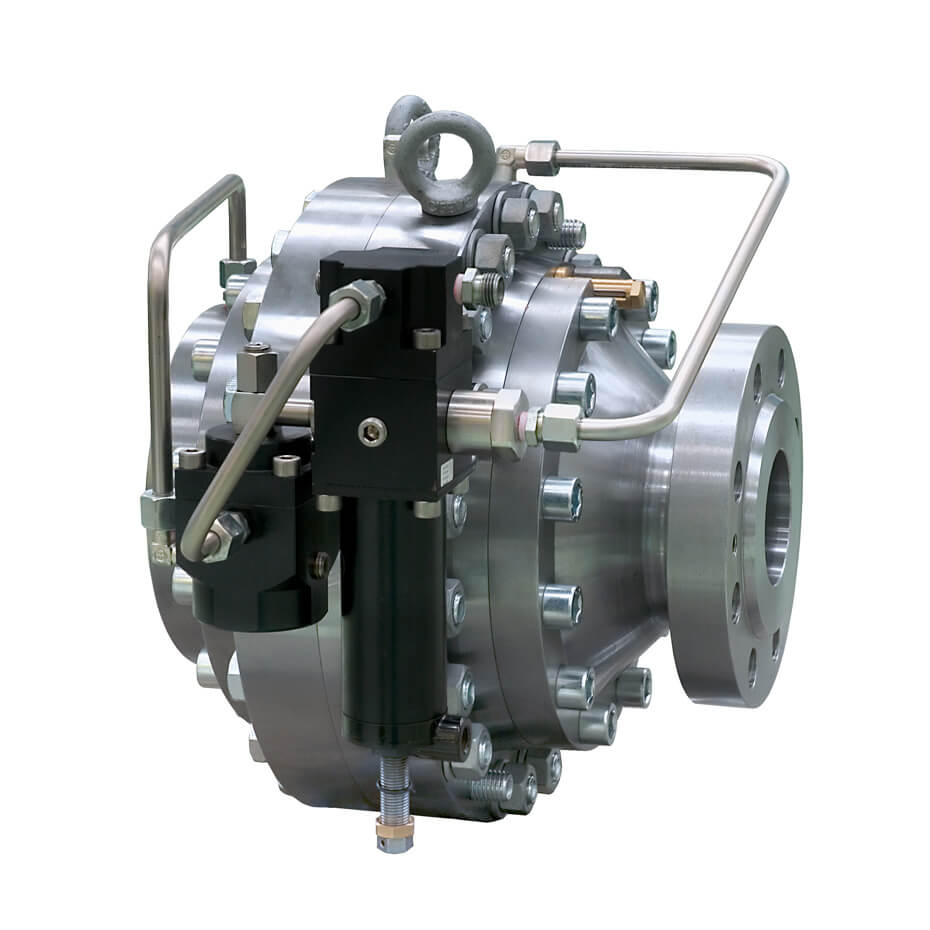

ASX 176
The pilot-operated pressure regulator ASX 176 can be used with previously filtered and non-aggressive gaseous fluids.
According to the European Standard EN 334, it is classified as Fail Close. It is particularly suitable for high-pressure transmission systems and for medium pressure natural gas distribution networks.
Features
- Accuracy class AC: up to 1
- Nominal sizes DN: 1″, 2″, 3″, 4″, 6″
- Lock-up pressure class SG: up to 5
- Design pressure: up to 102 bar
- Design temperature: from -20 °C to +60 °C
- Connections: class 300, 600 RF or RTJ according to ASME B16.5
- Minimum differential pressure: 0.5 bar
- Range of downstream pressure Wd: from 0.3 to 74 bar, depending on the installed pilot
- Inlet pressure range bpu: from 0.8 to 100 bar
- Configurations: Silencer, Monitor
